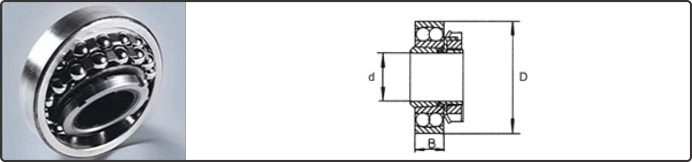

| ISO | Dimensions (mm) | Weight | |||||
|---|---|---|---|---|---|---|---|
| open | shielded | sealed | GOST | d | D | B | (kg) |
| 1206K+H206 | 11205 | 25 | 62 | 27 | 0.3 | ||
| 1207K+H207 | 11206 | 30 | 72 | 29 | 0.5 | ||
| 1208K+H208 | 11207 | 35 | 80 | 31 | 0.6 | ||
| 1209K+H209 | 11208 | 40 | 85 | 33 | 0.7 | ||
| 1210K+H210 | 11209 | 45 | 90 | 35 | 0.8 | ||
| 1211K+H211 | 11210 | 50 | 100 | 37 | 1 | ||
| 1212K+H212 | 11211 | 55 | 110 | 38 | 1.2 | ||
| 1213K+H213 | 11212 | 60 | 120 | 40 | 1.6 | ||
| 1215K+H215 | 11213 | 65 | 130 | 43 | 2.1 | ||
| 1216K+H216 | 11214 | 70 | 140 | 46 | 2.6 | ||
| 1217K+H217 | 11215 | 75 | 150 | 50 | 3.1 | ||
| 1218K+H218 | 11216 | 80 | 160 | 52 | 3.7 | ||
| 1306K+H306 | 11305 | 25 | 72 | 31 | 0.5 | ||
| 1307K+H307 | 11306 | 30 | 80 | 35 | 0.7 | ||
| 1308K+H308 | 11307 | 35 | 90 | 36 | 0.9 | ||
| 1309K+H309 | 11308 | 40 | 100 | 39 | 1.2 | ||
| 1310K+H310 | 11309 | 45 | 110 | 42 | 1.5 | ||
| 1311K+H311 | 11310 | 50 | 120 | 45 | 1.9 | ||
| 1312K+H312 | 11311 | 55 | 130 | 47 | 2.4 | ||
| 1313K+H313 | 11312 | 60 | 140 | 50 | 2.8 | ||
